Whittington Matt Black Spindle Designs

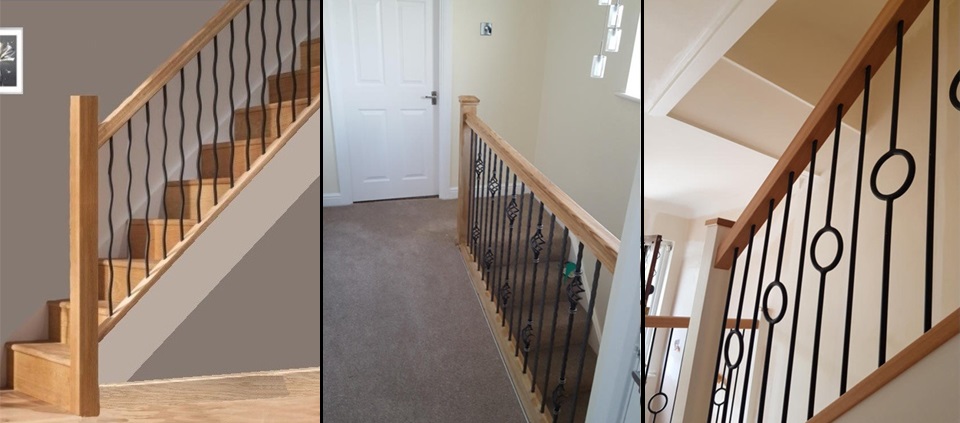

Black metal spindles are popular in both traditional and contemporary, round or square designs. They can add a touch of elegance, contrast, or modernity to the overall aesthetic of a space. The black finish is often chosen for its ability to create a striking visual impact and its compatibility with different colour schemes.

Black Iron Spindle Designs

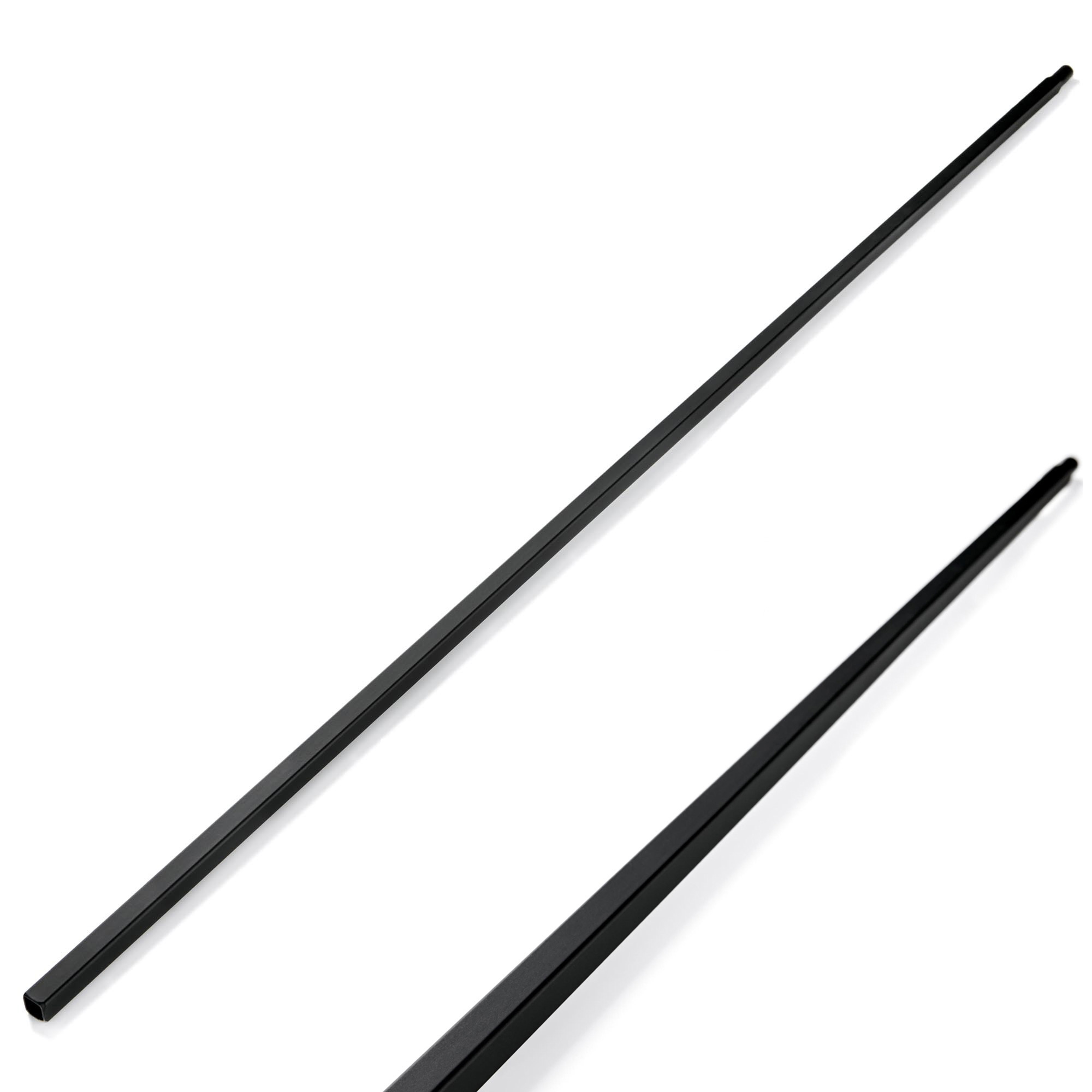

WT-SQ
Whittington Square Spindle
Size: 13mm x 13mm x 1117mm

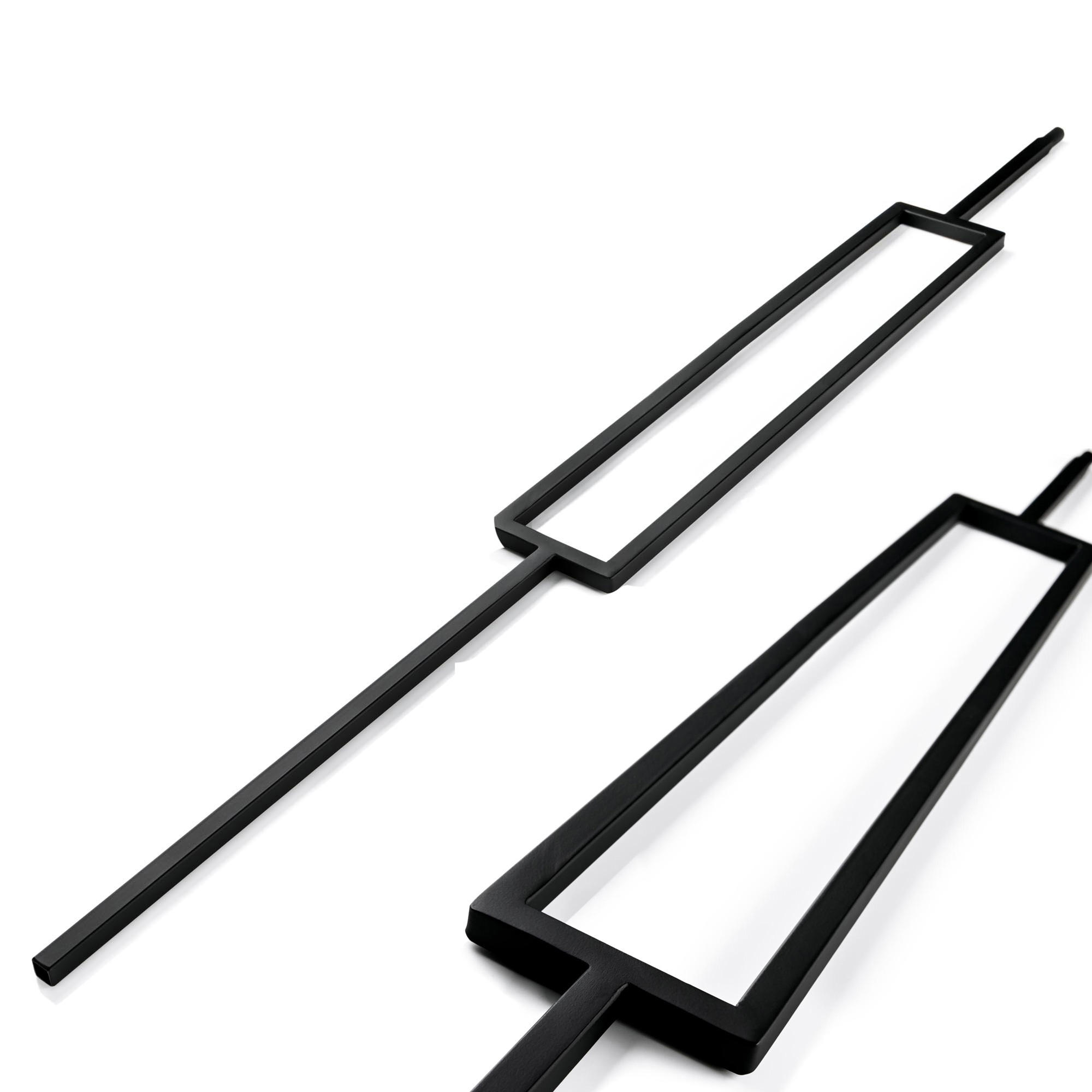

WT-RT
Whittington Rectangle Spindle
Size: 13mm x 13mm x 1117mm

WT-OVAL
Whittington Oval Spindle
Size: 13mm x 13mm x 1117mm

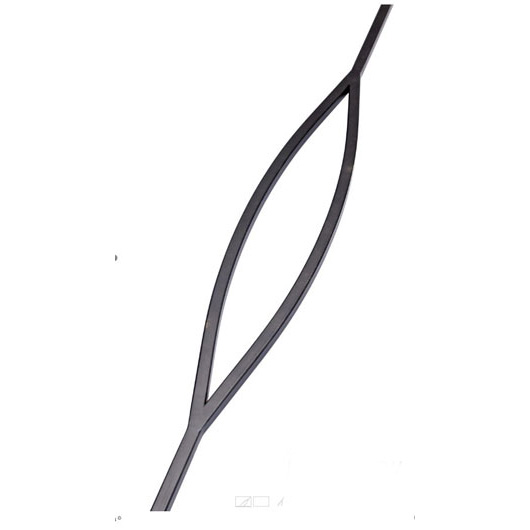

WT-TEARDROP
Whittington Tear Drop Spindle
Size: 13mm x 13mm x 1117mm

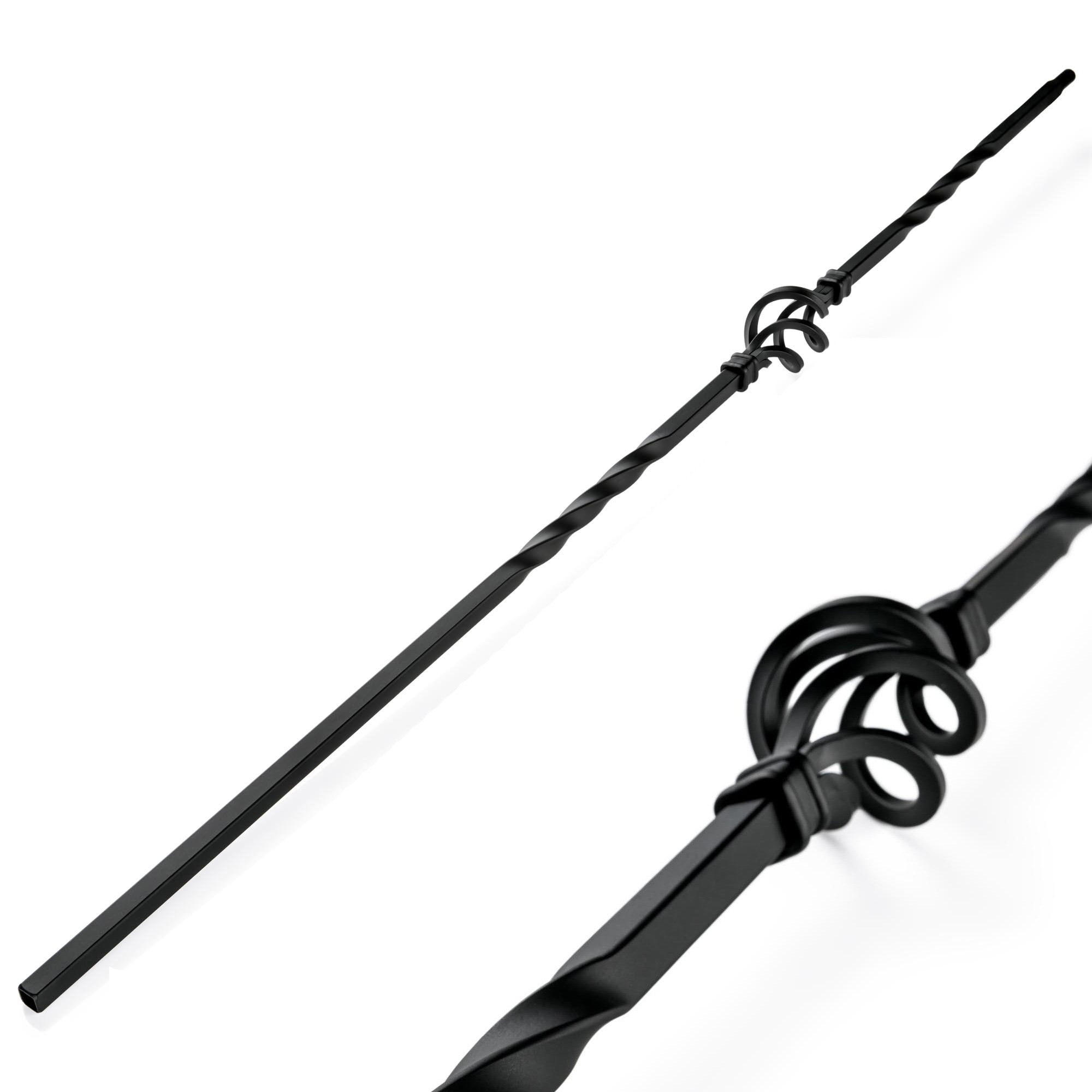

WT-BASKET(S)
Whittington Single Basket Spindle
Size: 13mm x 13mm x 1117mm

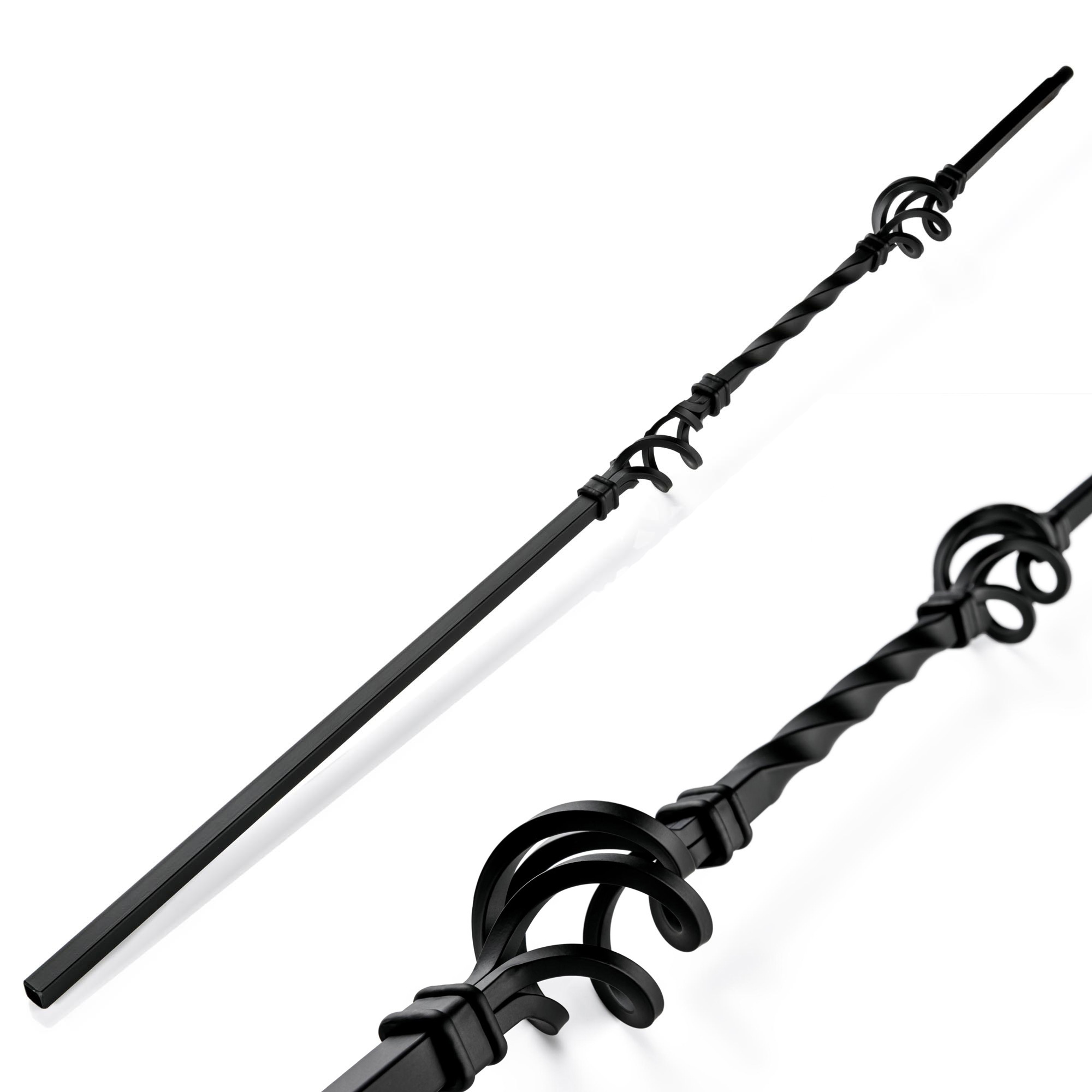

WT-BASKET(D)
Whittington Double Basket Spindle
Size: 13mm x 13mm x 1117mm

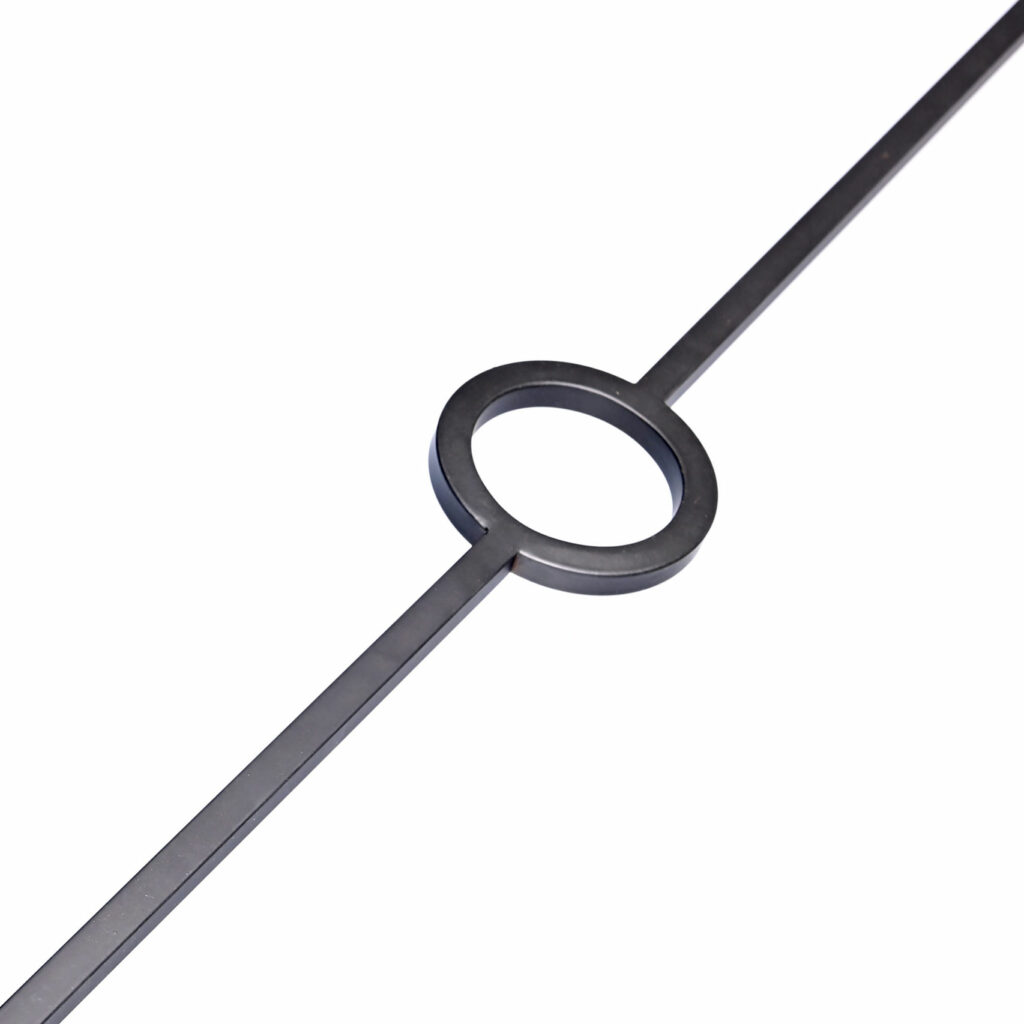

WT-CIR(S)
Whittington Single Circle Spindle
Size: 13mm x 13mm x 1117mm

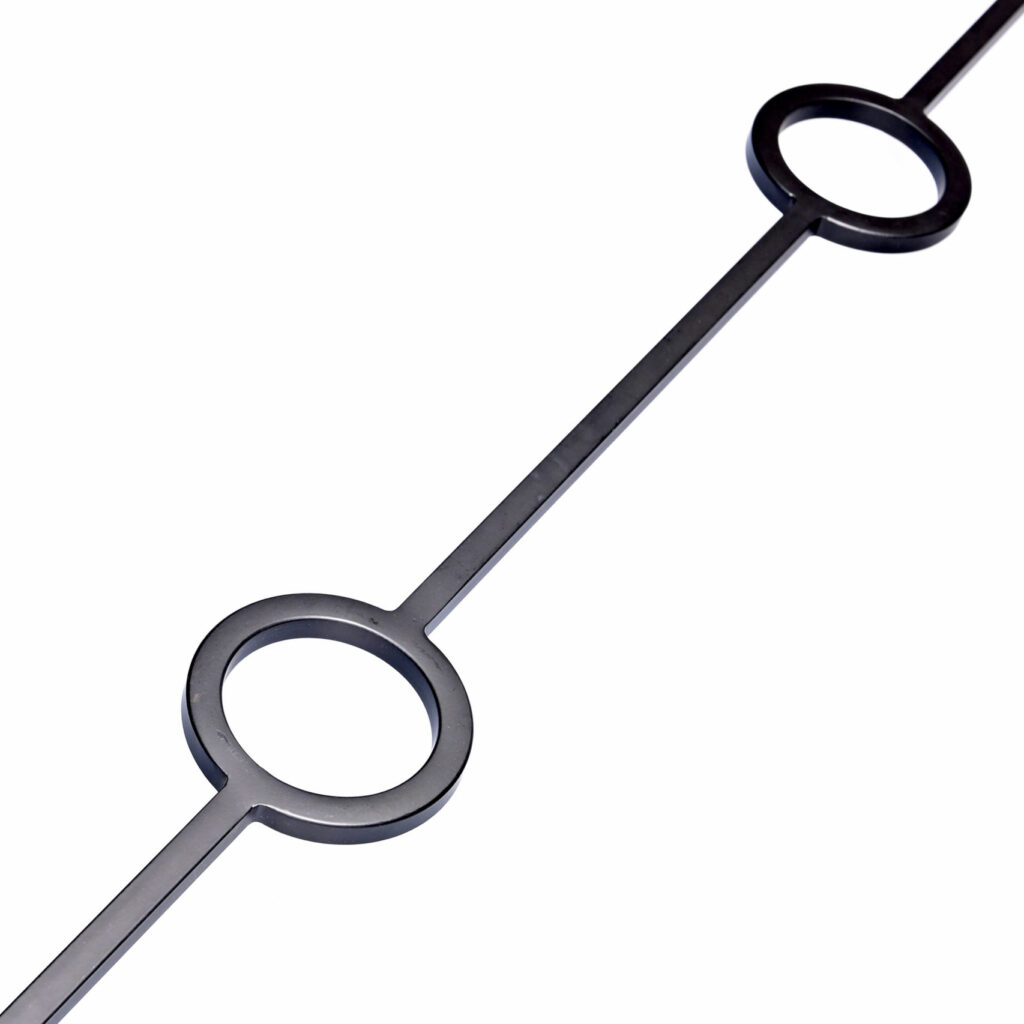

WT-CIR(D)
Whittington Double Circle Spindle
Size: 13mm x 13mm x 1117mm

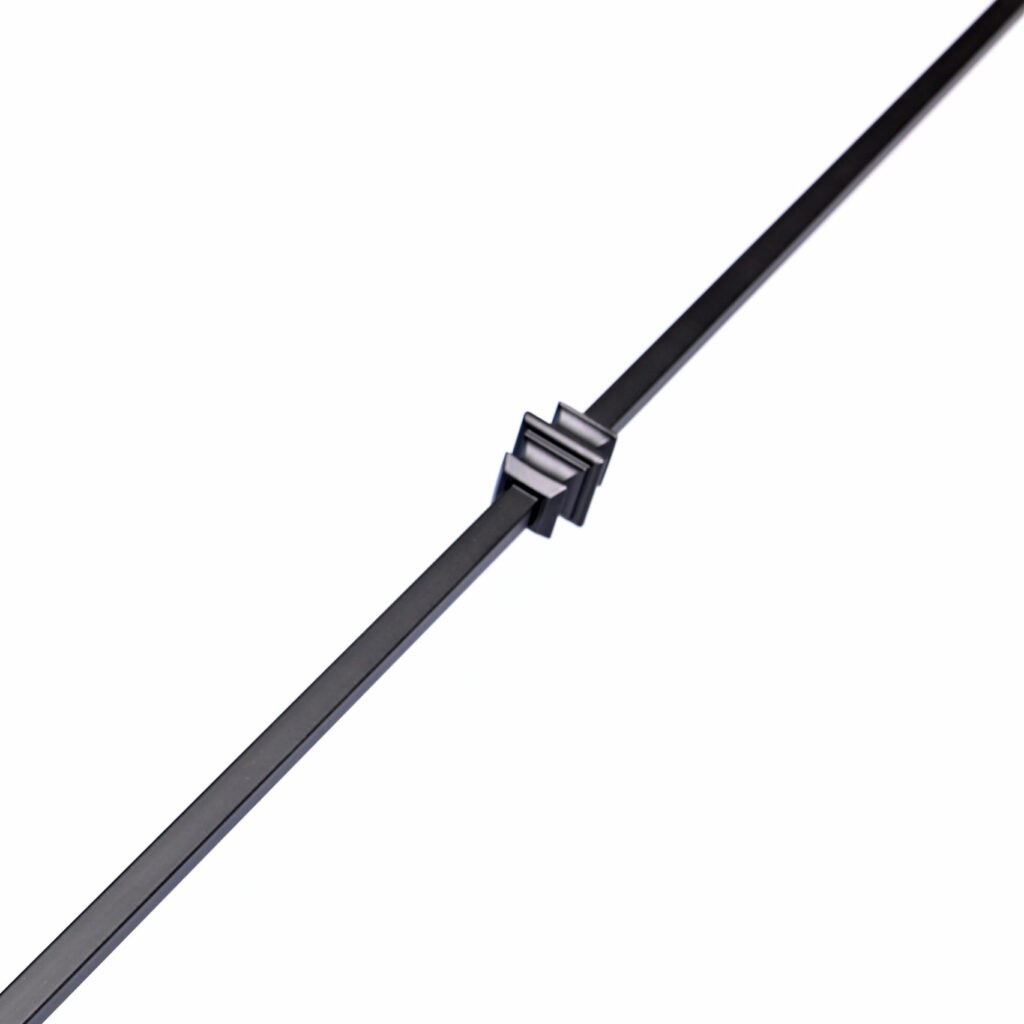

WT-KNUCKLE(S)
Whittington Single Knuckle Spindle
Size: 13mm x 13mm x 1117mm

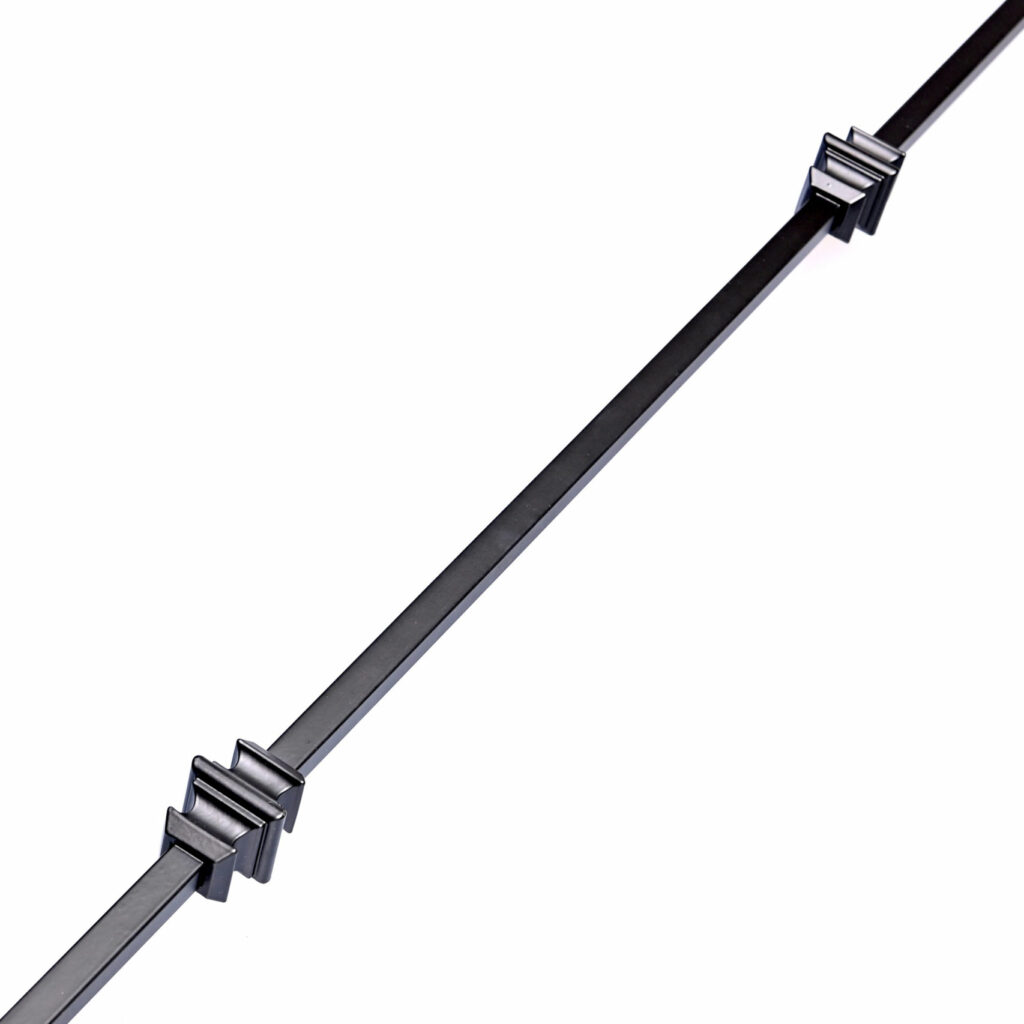

WT-KNUCKLE(D)
Whittington Double Knuckle Spindle
Size: 13mm x 13mm x 1117mm

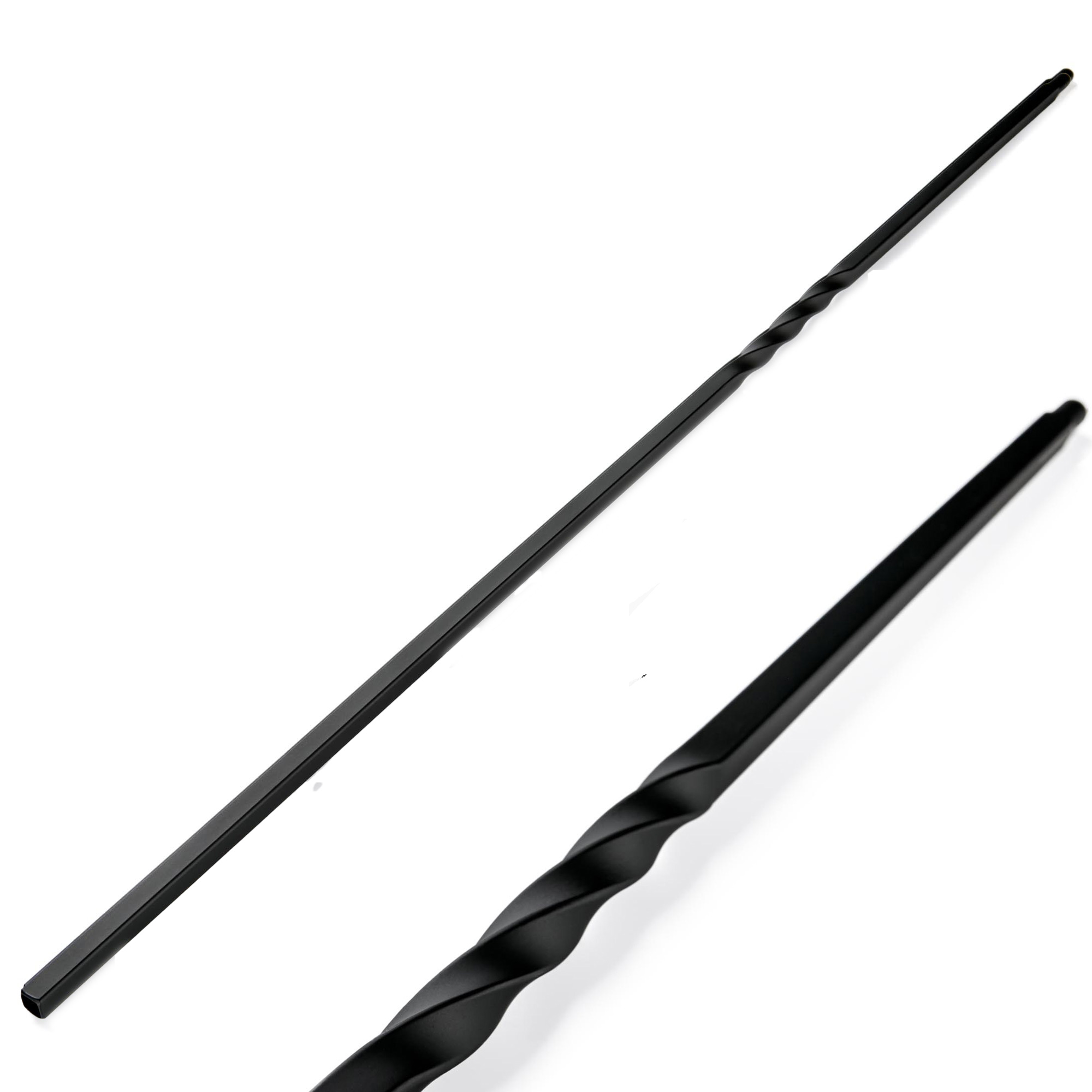

WT-TWIST(S)
Whittington Single Twist Bar Spindle
Size: 13mm x 13mm x 1117mm

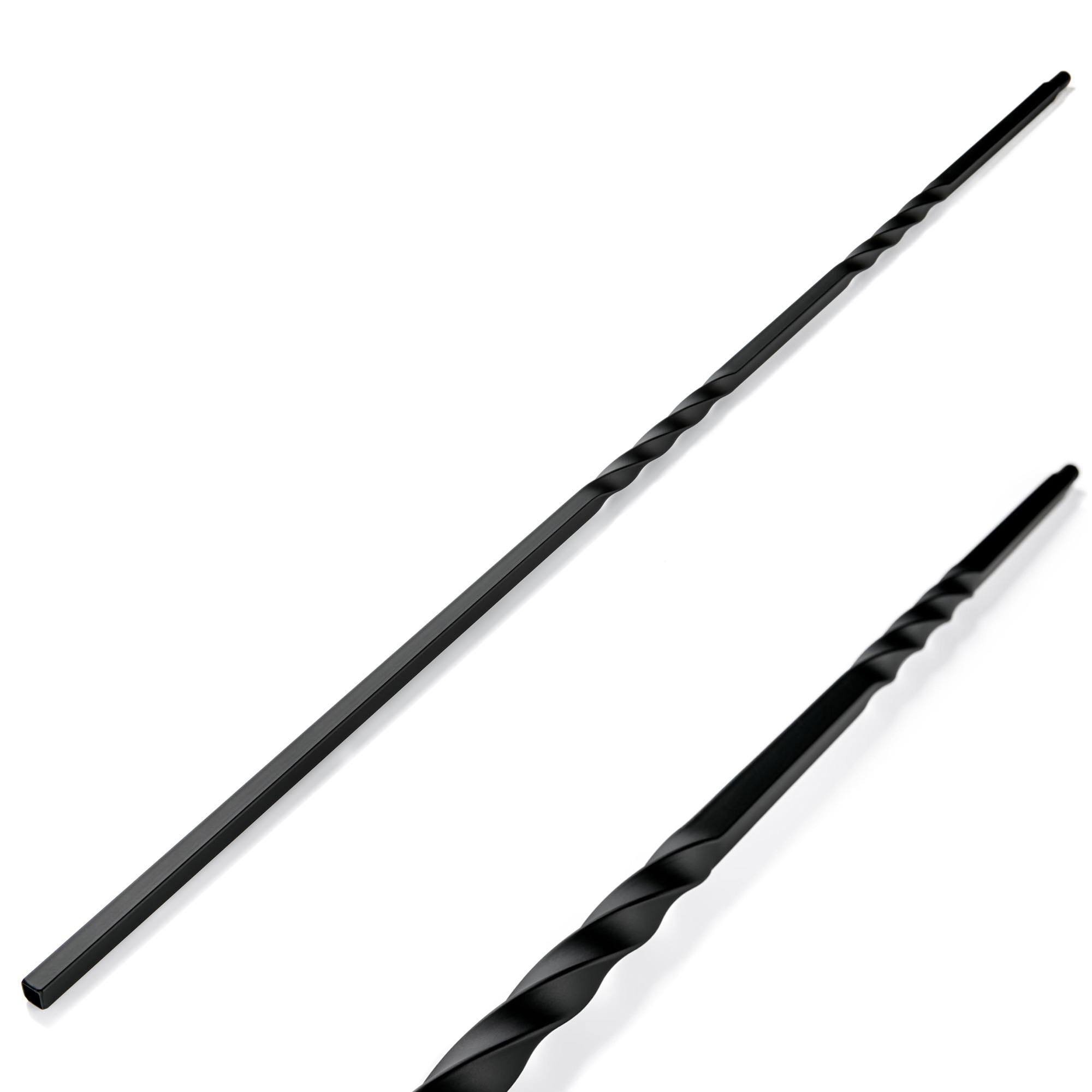

WT-TWIST(D)
Whittington Double Twist Bar Spindle
Size: 13mm x 13mm x 1117mm

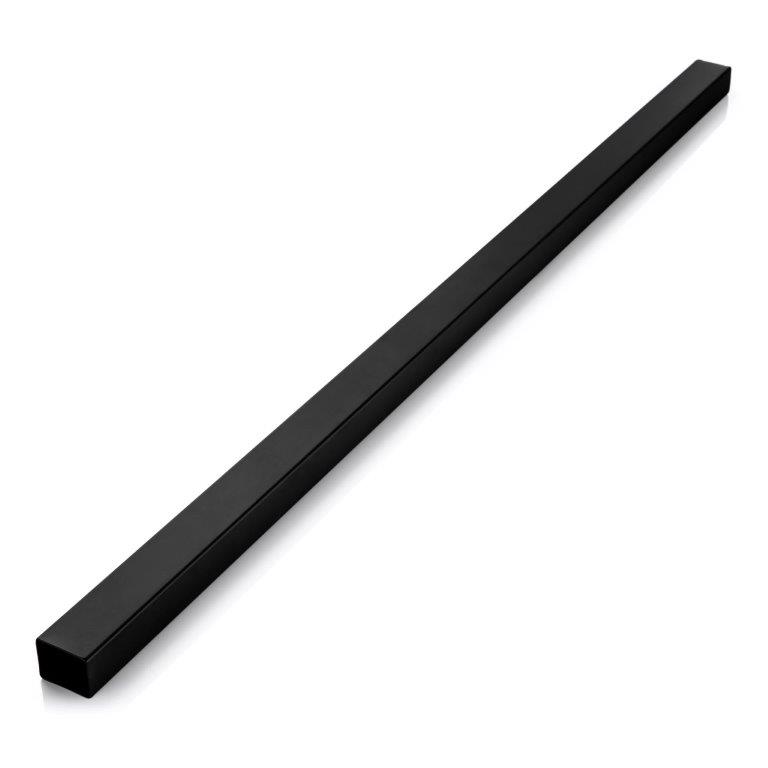

WT-UNQSP
Whittington Unique Plain Spindle
Size: 41mm x 32mm x 1117mm

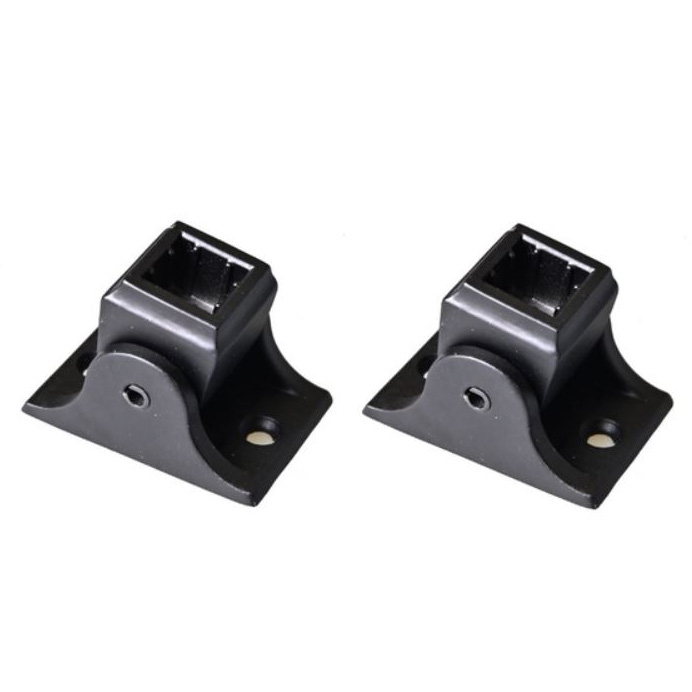

WTB
Adjustable spindle bracket compatible
with 13mm square spindles


The black iron spindles shown above are powder coated with a matt black finish.
Each spindle features a 13mm square end and a 12mm dowel end, making them suitable for rake, landing, and cut-string staircases

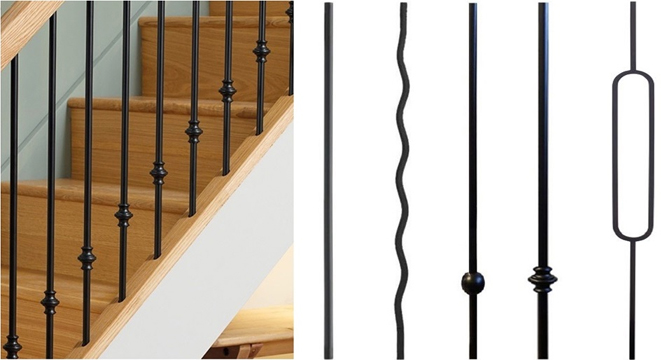

Round Spindles

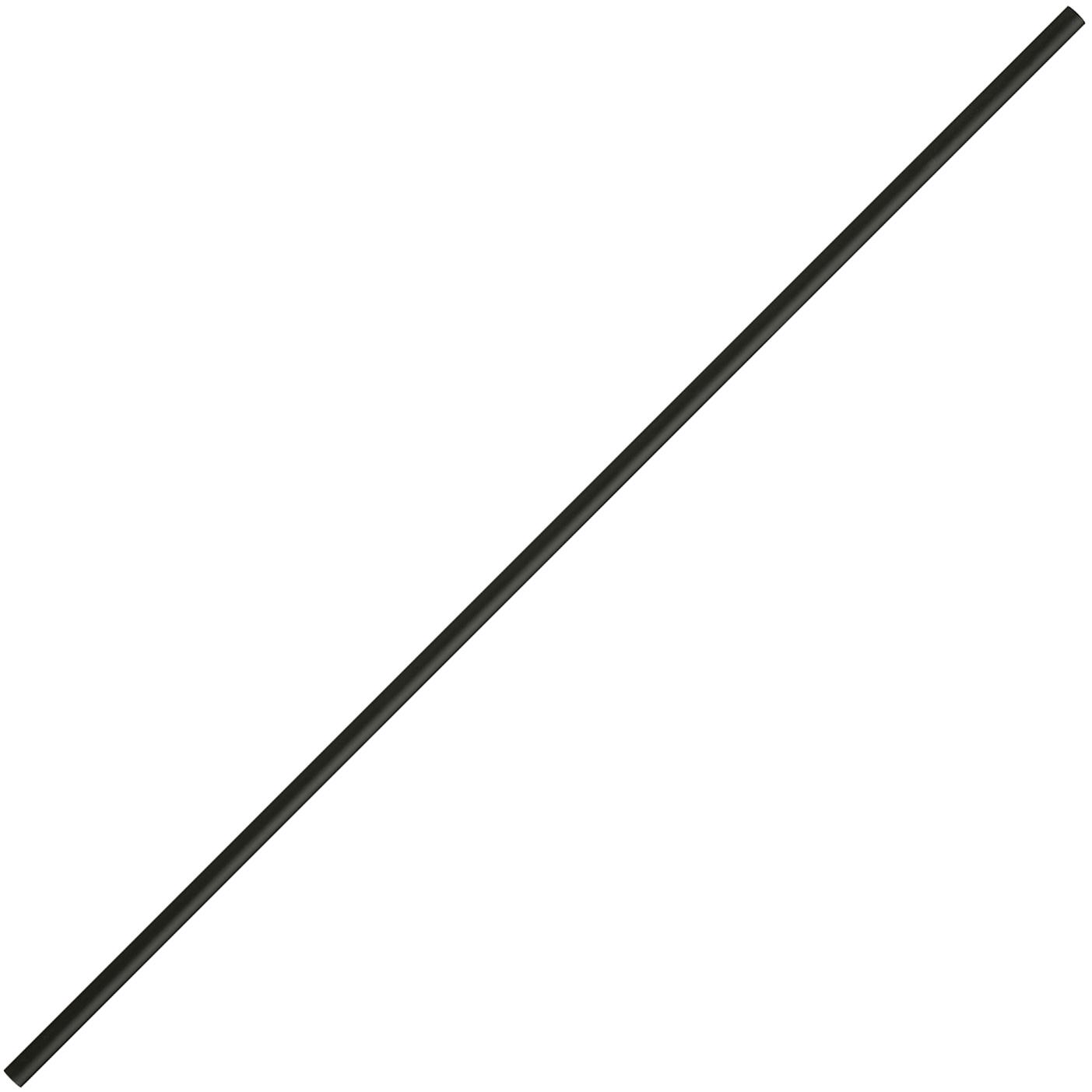

ISPLAND
Matt Sheen Round Spindle
14mm x 14mm x 855mm

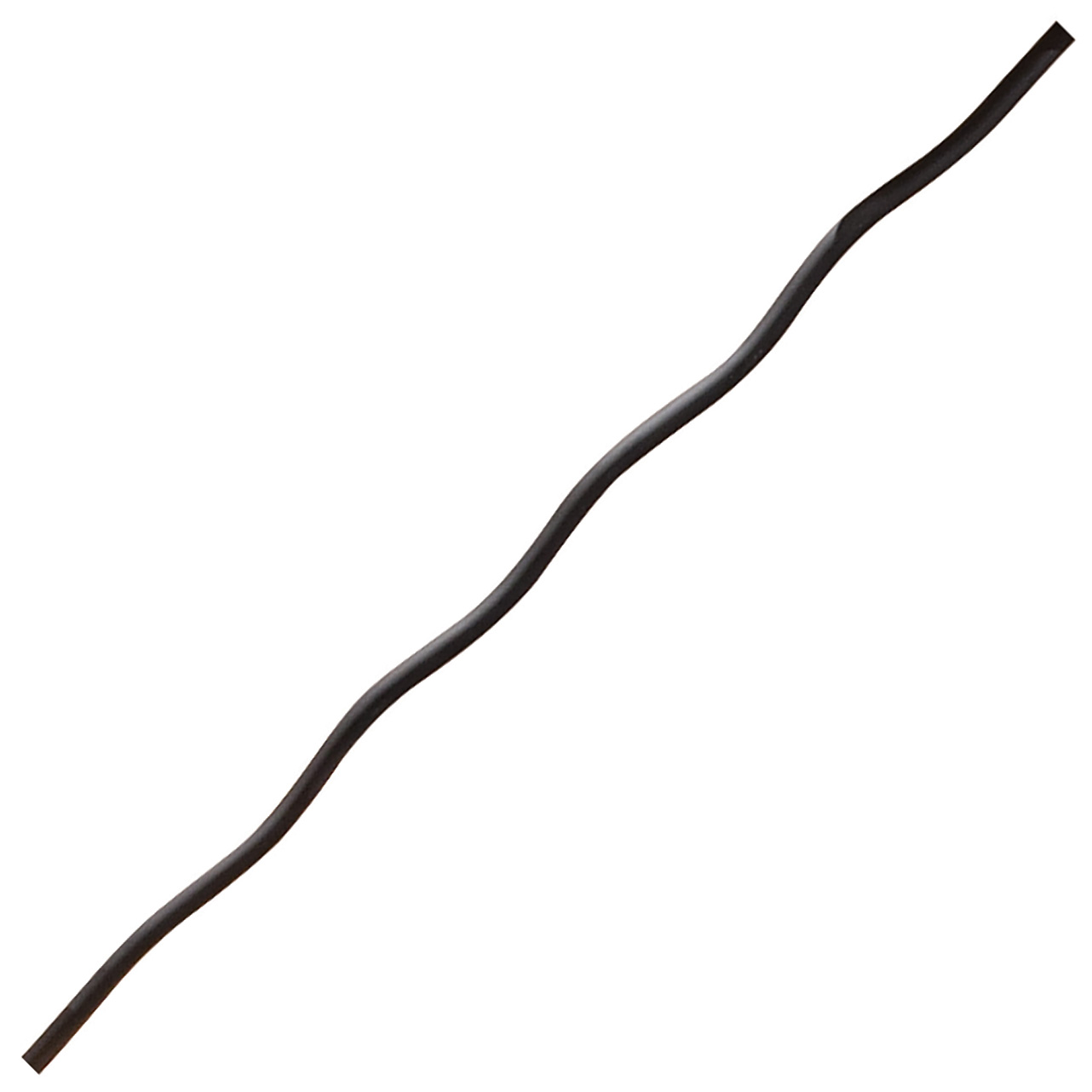

ISWLAND
Matt Sheen Wavy Spindle
14mm x 14mm x 855mm

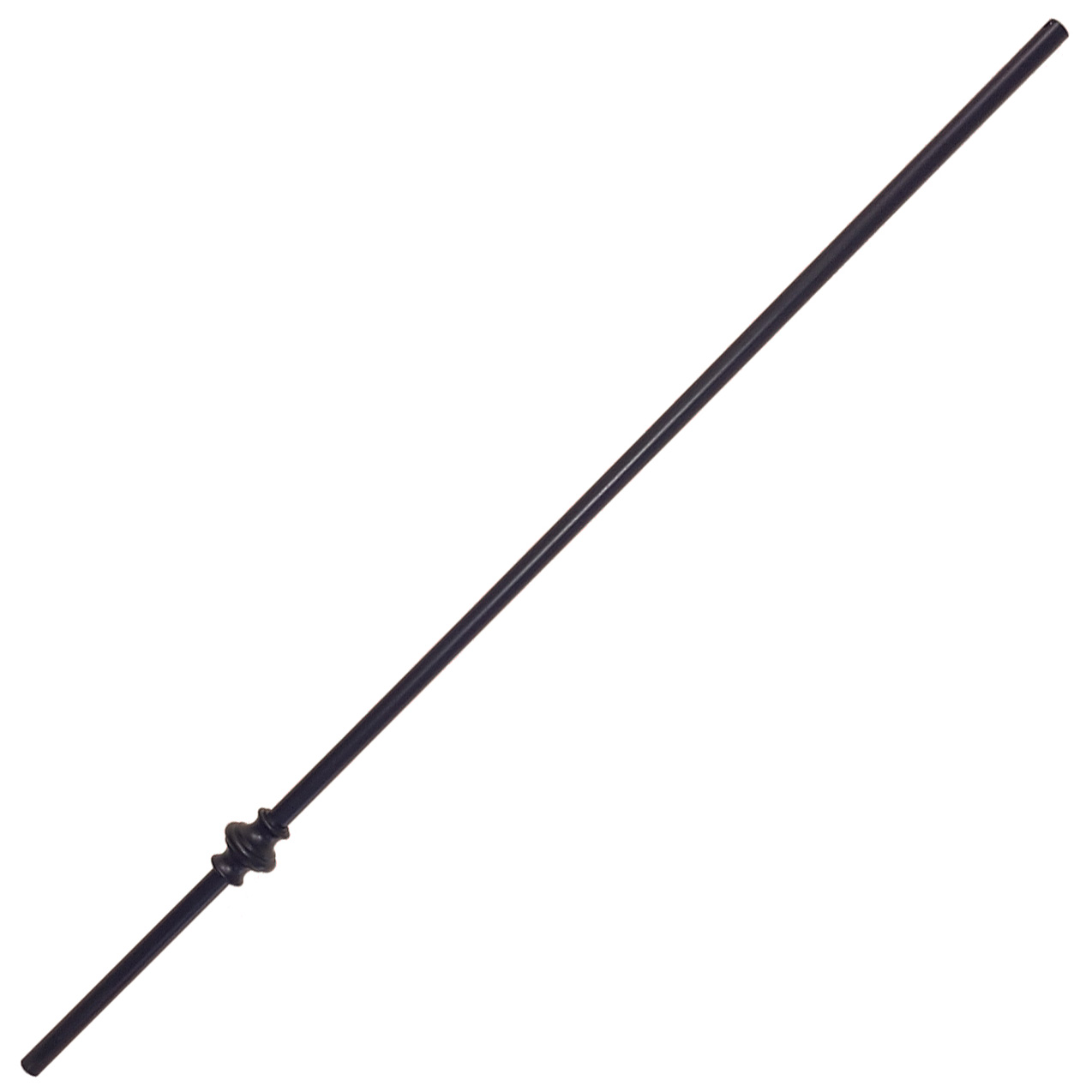

IMLAND
Matt Sheen Marbury Spindle
14mm x 14mm x 855mm

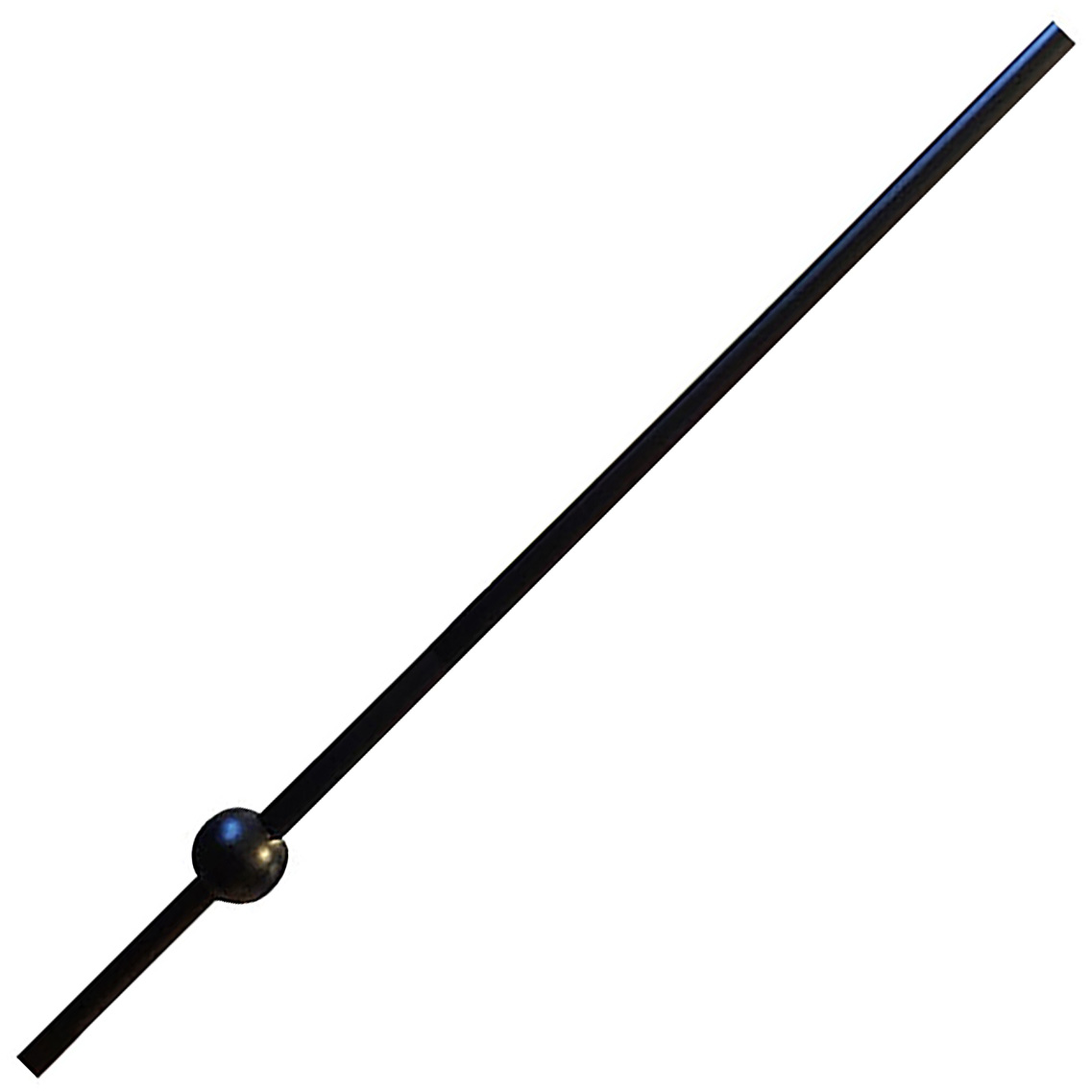

IOLAND
Matt Sheen Orb Spindle
14mm x 14mm x 855mm

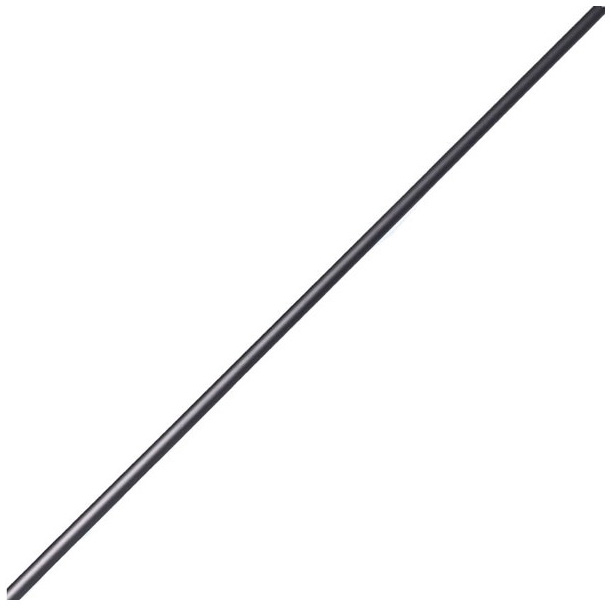

WTRD
Whittington Matt Black Round Spindle
14mm x 14mm x 1117mm

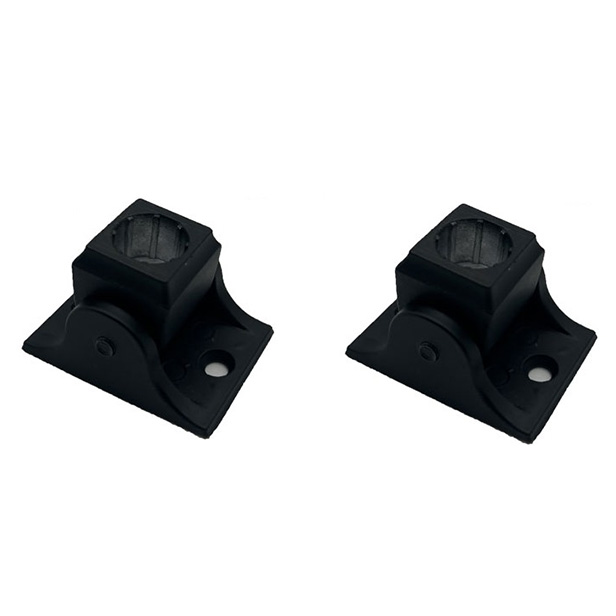

WTB Round
Whittington Matt Black adjustable rake and landing brackets (pair) for 14mm spindles
Base plate 50mm x 35mm

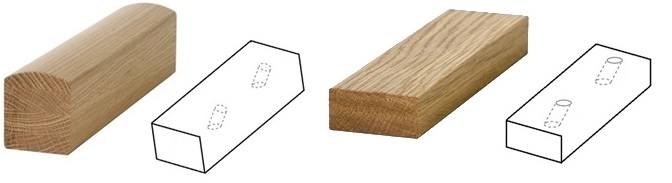

Drilled Rails

We can supply all our timber handrail profiles drilled with either a round or square hole to suit our black iron spindles. We recommend a maximum of 125mm spacing between holes on the rake and 90mm spacing between holes on the landing. All rake handrails and baserails holes with be drilled to the correct rake angle of the customers staircase and CAD drawings provided to create the perfect spacings between newel posts.

It's important to note that iron stair parts can be combined with other materials like timber and glass, to create unique and aesthetically pleasing staircases. The specific design and configuration of iron stair parts may vary based on individual preferences, architectural style
